Narrow Mast Electric Lift Trucks - Powered Drive and Powered Lift

  • Details
    Narrow Mast Electric Lift Trucks - Powered Drive and Powered Lift



    These fully powered stackers from Vestil feature a narrow single mast which allows the operator to see past potential obstructions. The lift and drive both have a high torque 24VDC motor that can handle heavy duty jobs. These electric lift trucks are packed with features that will allow you to transport loads safely, easily and quickly throughout your warehouse.

    Features

    • Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.
    • Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.
    • Powered lifter has two 12V, 78-85Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge.
    • Stacker rolls smoothly on poly-on-steel steer and load wheels.
    • Feature 1.0 KW drive and 2.0 KW lift motor.
    • 3-4 hour operation at full charge - 8 hours when used intermittently.
    • High torque 24V DC drive & lift motors
    • Safe and energy efficient
    • Narrow mast for increased visibility

    Narrow Mast Stacker with Powered Drive and Powered Lift
    Model PDF's Fork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)

     Fixed Forks/ Adjustable Support Legs (works with pallets & skids)

    SNM-62-FA 26-3/4" x 42" 2-1/2" 62" 2,200 lbs. - 1312

     Adjustable Forks / Adjustable Support Legs (works with pallets & skids)

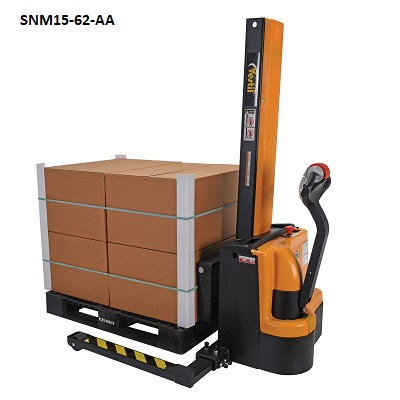

    SNM15-62-AA 8.3"to26-3/4"x42" 2-1/8" 62" 1,500 lbs. - 1106
    SNM-62-AA 8.3"to26-3/4"x42" 2-1/8" 62" 2,200 lbs. - 1106

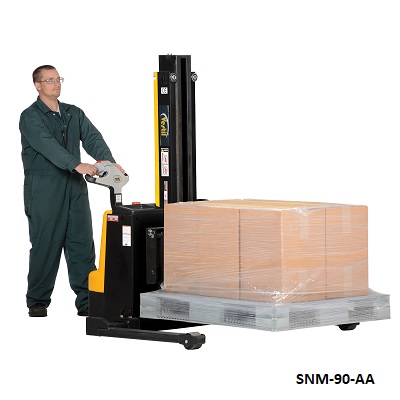

    SNM-90-AA - 8.3"to26-3/4"x42" 2-1/8" 90" 2,500 lbs. 2,000 lbs. 1502
    SNM3-43-AA 8.3"to26-3/4"x42" 2-1/8" 43" 3,000 lbs. - 1380

     Fixed Forks Over Fixed Support Legs (works with skids only)

    SNM15-62-FF-27 26-3/4"x42" 3-3/8" 62" 1,500 lbs. - 1221
    SNM-62-FF-21 - 21"x42" 3-3/8" 62" 2,200 lbs. - 1170
    SNM-62-FF-27
    26-3/4"x42" 3-3/8" 62" 2,200 lbs. - 1132
    SNM-90-FF-27 - 26-3/4"x42" 3-3/8" 90" 2,200 lbs. 1,500 lbs. 1500
    SNM3-43-FF-21 - 21"x42" 3-3/8" 43" 3,000 lbs. - 1256
    SNM3-43-FF-27 26-3/4"x42" 3-3/8" 43" 3,000 lbs. - 1266

     Options

    AGM-UPG-2-12V AGM Battery Upgrade (2x12V) must be purchased with new unit 80
    SL-DK Solid Platform 46


    Narrow Mast Electric Lift Trucks - Powered Drive and Powered Lift - Reviews

    There are no reviews for this product.

    Expand description
Item - SNM-62-FA
Our price - $6717.99
Quantity:
Our price - $6717.99
SNM-62-FA
Model
Optional Battery Upgrade
Solid Platform Option
