2200 lbs Capacity Manual Single Scissor Lift Table - 39.4" Lift
- Details
Tap Image To Zoom
This item has been discontinued. Please check other similar Scissor Lift Tables such as the following:
Also Available In:
- 330 lbs Capacity Double Scissor Lift Table with 29” Lift Height
- 330 lbs Capacity Double Scissor Lift Table with 43.3” Lift Height
- 440 lbs Capacity Double Scissor Lift Table with 39.4” Lift Height
- 660 lbs Capacity Single Scissor Lift Table with 35.4” Lift Height
- 770 lbs Capacity Double Scissor Lift Table with 52.1” Lift Height
- 1,100 lbs Capacity Single Scissor Lift Table with 35.4” Lift Height
- 1,760 lbs Capacity Double Scissor Lift Table with 59” Lift Height
This Manual Single Scissor Lift Table is rated with a high maximum weight capacity of 2,200 lbs and features an ergonomically designed hydraulic foot pump capable of raising your loads up to 39.4 inches high. It also features an easy release lever designed to lower and position your loads in just a matter of seconds.
It comes standard with a large and sturdy platform measuring 40” long and 20” wide large enough for handling all sorts of loads and can even be used as an alternative work-station for handling and assembling operations. It works great for most material handling applications such as transporting loads, order-picking, and moving products in general.
This Single Scissor Lift Table is made out of superior quality parts and components with a heavy duty steel frame providing the unit a great mix of strength, durability and versatility as well as great hold up for longevity. It is also equipped with 5.9” easy-rolling casters that offer exceptional maneuverability in most terrains and surfaces.
Standard Features:
- Ideal design for lifting and transporting goods, widely used for workbench and assembly line operation
- Handle plate provides protection from falling items
- Big platform size provides more appilications
- Comes with support plat on side of arm to ensure the safety service
- Welded steel frame with durable coat finish ensuring maximum durability and a long service life

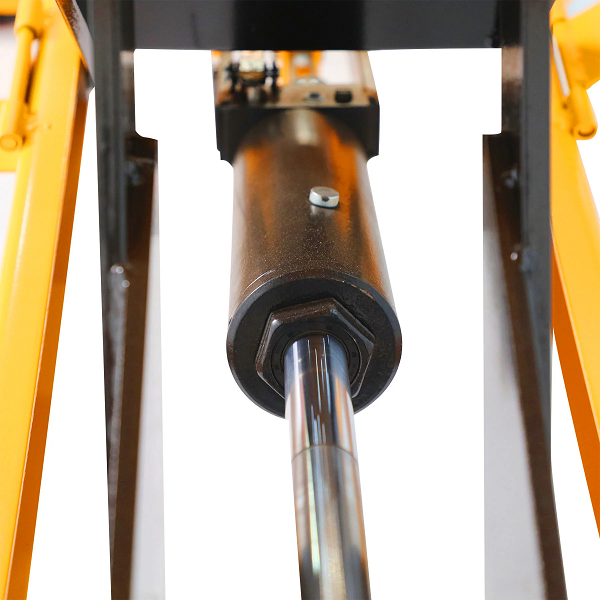

- Durable hydraulic pump ensures a long service life
- Easy action foot operated foot hydraulic pedal for raising the lift table to a desired height level.
- Safety back guard protects operators from dangers
- Has over load by pass valve to protect operator and pump
- Convenient finger release smoothly lowers even heavy loads
- Easy-release lever to lower

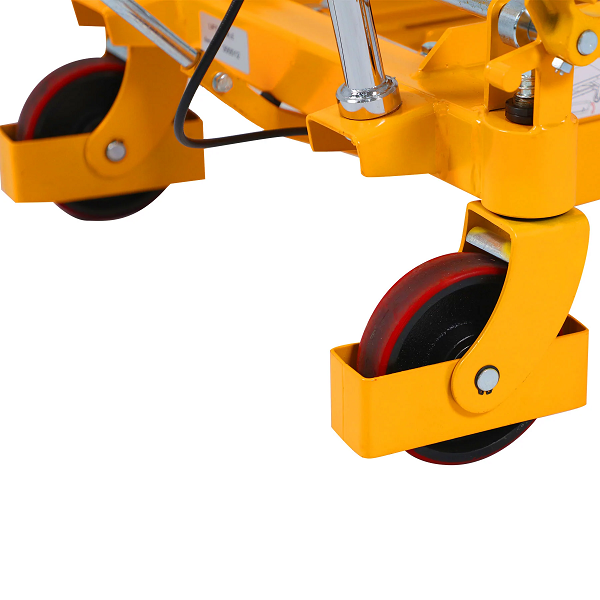

- Comes standard with robust casters with safety wheel guard enhance safety while operation

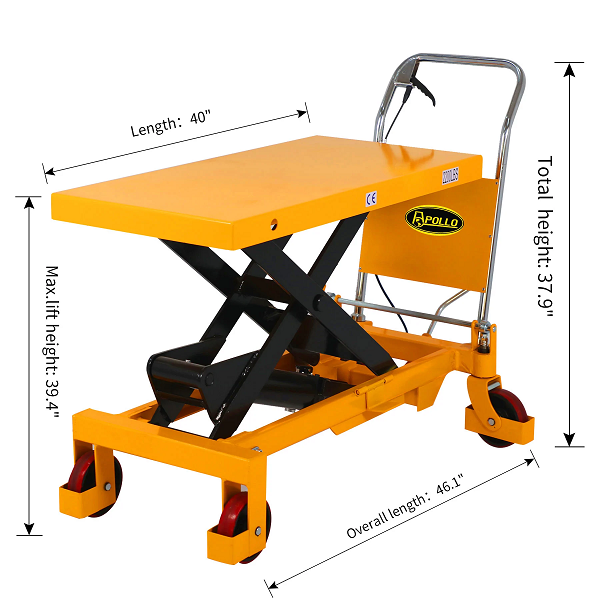

Specifications:
- Load Capacity: 2,200 lbs
- Table Size (Length x Width x Height): 39.4”L x 20”W x 2.4”H
- Maximum Lift Height: 39.4”
- Lifting Height: 24.4”
- Lowered Height: 15”
- Total Length: 45.3"
- Overall Height: 39.2"
- Number of Pumps to Reach Full Height: ≤55
- Wheel Diameter: 5.9"
- Weight: 254 lbs
